Wax-Free vs Wax Polishing Pads in CMP Processing

In chemical mechanical planarization (CMP), the polishing pad is not merely a consumable surface but a critical process component that directly affects wafer flatness, material removal rate (MRR), defectivity, yield stability, and overall cost of ownership (CoO). Among available pad architectures, wax-free CMP polishing pads and traditional wax-based polishing pads represent two fundamentally different philosophies of wafer fixation, force transmission, and contamination control.

This page provides an engineering-level comparison between wax-free and wax polishing pads, focusing on structural design, adsorption mechanisms, process behavior, defect risks, maintenance complexity, and long-term manufacturing economics. The goal is to support data-driven decision-making rather than high-level marketing claims.

Structural Differences Between Wax-Free and Wax Pads

The most fundamental distinction between wax-free and wax-based polishing pads lies in how wafer fixation is achieved and integrated into the pad structure. This structural difference propagates into nearly every aspect of CMP process behavior.

Wax-Based Polishing Pad Structure

Wax-based systems rely on a thermoplastic or thermosetting wax layer applied between the wafer backside and the polishing carrier or pad surface. Typical wax materials include hydrocarbon-based waxes or polymer-modified wax blends with softening temperatures between 60–90°C.

• Discrete wax layer acting as adhesive interface
• Wax thickness typically 50–150 μm
• Requires heating for bonding and cooling for fixation
• Mechanical compliance varies with temperature

This approach introduces a non-uniform, temperature-sensitive interlayer into the CMP stack, which directly affects pressure transmission and wafer flatness control.

Wax-Free Polishing Pad Structure

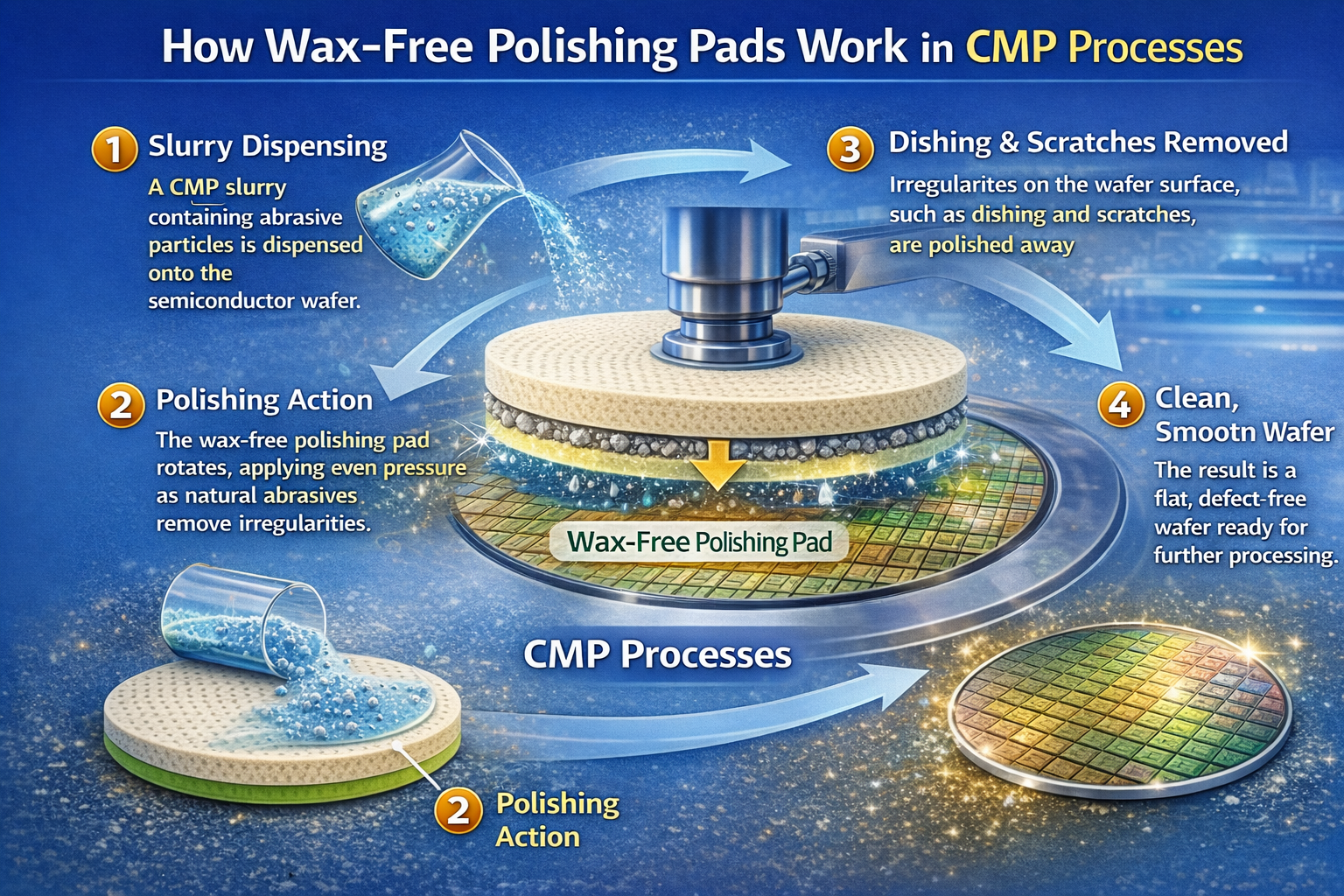

Wax-free polishing pads eliminate the wax layer entirely and instead integrate adsorption capability directly into the pad body or sub-layer. Adsorption mechanisms may include vacuum microchannels, capillary suction, or engineered micro-porous structures.

• No external adhesive or bonding material
• Adsorption structures integrated into pad microarchitecture
• Direct mechanical coupling between wafer and pad
• Thermally stable fixation behavior

A deeper discussion of adsorption architectures can be found in Wax-Free Adsorption Polishing Pad Technology.

Wafer Holding and Adsorption Mechanisms

Wafer fixation determines how polishing pressure, shear force, and slurry-induced hydrodynamic forces are transferred during CMP. Differences in holding mechanisms create measurable variations in polishing uniformity and defect behavior.

Wax-Based Fixation Behavior

Wax fixation relies on adhesive bonding strength, which is a function of wax viscosity, bonding temperature, and cooling rate. This introduces several variables:

• Bonding strength decreases with temperature drift
• Local thickness variation leads to pressure non-uniformity
• Wax creep under long polish cycles

As a result, wafer backside flatness can be compromised, especially in long-duration or multi-step CMP processes.

Wax-Free Adsorption Fixation

Wax-free pads achieve wafer holding through distributed adsorption forces. Unlike adhesive bonding, adsorption provides:

• Uniform normal force distribution
• Immediate fixation without thermal cycling
• Repeatable holding force across wafers

Typical adsorption pressure ranges from 5–25 kPa depending on pad design, microchannel density, and vacuum configuration.

Parameter	Wax-Based Pads	Wax-Free Pads
Fixation Principle	Thermal adhesive bonding	Physical adsorption
Thermal Sensitivity	High	Low
Fixation Repeatability	Medium	High

CMP Process Performance Comparison

From an engineering standpoint, CMP performance is evaluated using measurable indicators such as MRR stability, within-wafer non-uniformity (WIWNU), and process drift over time.

Material Removal Rate Stability

Wax-based systems often show MRR drift due to wax softening, compression, and gradual redistribution under load. Wax-free pads demonstrate more stable MRR behavior due to direct mechanical coupling.

Typical observed MRR variation:

• Wax-based pads: ±6–10%
• Wax-free pads: ±2–4%

Planarity and Edge Control

Wax-free pads generally provide improved edge exclusion control due to uniform pressure transmission, which is critical for advanced nodes where usable wafer area is tightly constrained.

Defectivity and Contamination Risks

Defect control is a major driver behind the industry shift toward wax-free CMP systems.

Wax-Related Contamination Risks

• Wax residue on wafer backside
• Organic contamination migrating to front side
• Particle generation during wax removal

These risks increase cleaning complexity and can reduce yield, particularly in copper and advanced dielectric CMP steps.

Wax-Free Cleanliness Advantages

Wax-free systems eliminate organic adhesive residues entirely, simplifying post-CMP cleaning and reducing defect density, especially micro-scratches and organic films.

Maintenance, Consumables, and Cost Models

While wax-based pads may appear lower cost at initial purchase, total cost of ownership reveals a different picture.

Wax-Based System Costs

• Wax material consumption
• Heating and cooling energy
• Additional cleaning steps
• Increased downtime

Wax-Free System Economics

Wax-free pads reduce auxiliary consumables and simplify process flow, resulting in lower long-term operating costs despite higher initial pad price.

Engineering Decision Guidelines

Selection between wax-free and wax polishing pads should consider:

• Node technology and planarity requirements
• Defect density sensitivity
• Process temperature window
• Equipment compatibility

For fabs targeting advanced logic, memory, or high-yield copper CMP, wax-free pads are increasingly becoming the default choice.

Typical Application Scenarios

Wax-free polishing pads are commonly adopted in:

• Copper CMP
• Low-k dielectric CMP
• Advanced packaging processes
